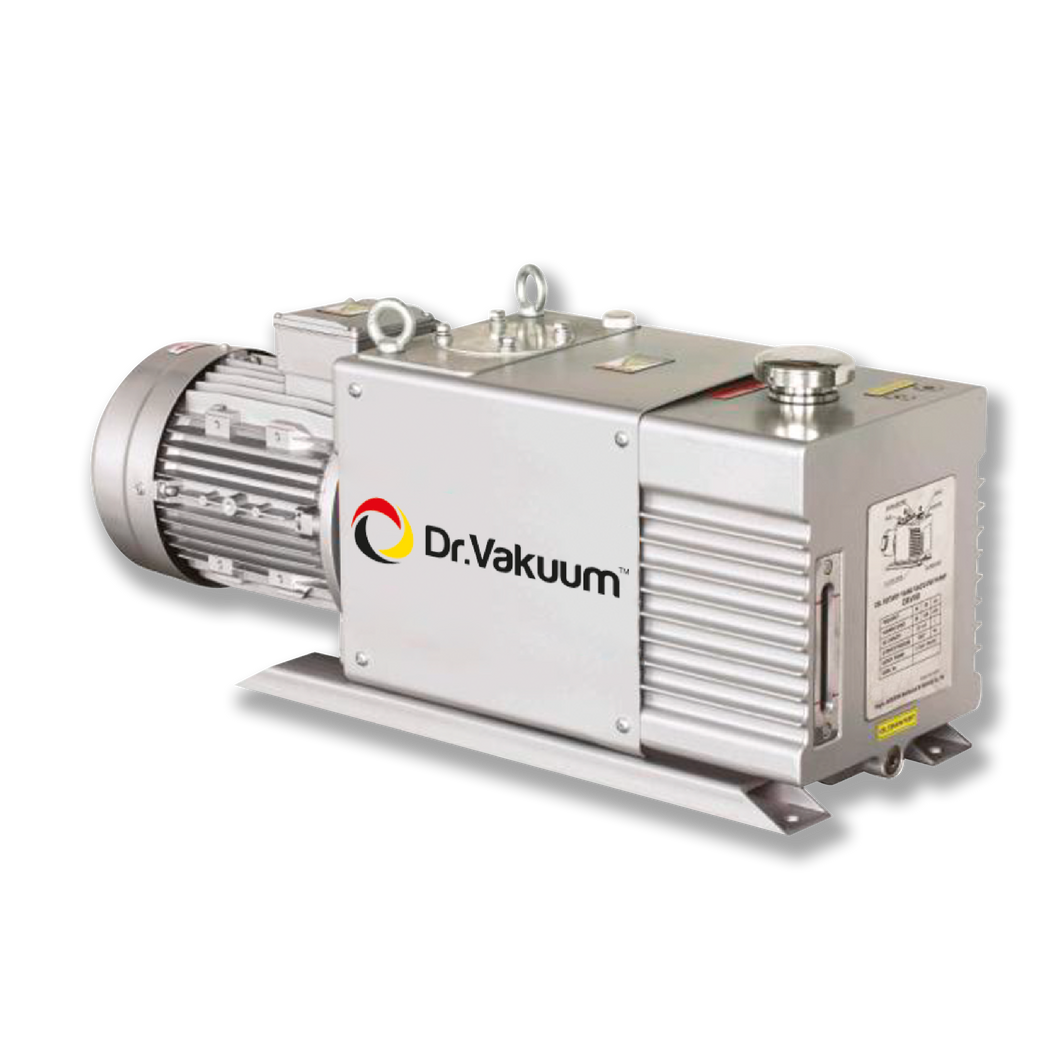

Dr.Vakuum DRV60 (*OS) Two-Stage Oil Lubricated Rotary Vane Vacuum Pump family. It is the latest premium products we have been developing for years. Its special design and high-quality materials drive to be your smart solution for various application & industries.
Technical Data
| Nominal speed @ 50, 60 Hz | 90(1500), 108(1800) | m3/h(L/min) |
| Ultimate pressure(GP open,GP close) | 2.0, 6.7x10-1 | Pa |
| Motor power @ 3 phase | 3.7 | Kw |
| Motor speed @ 50 Hz | 1400 | rpm |
| Inlet / outlet connection | KF40 | - |
| Oil filling @ 50 Hz | 2.5 - 4.2 | Liters |
| Gross weight @ 50 Hz | 102 | Kg |
Characteristic Curves
Remark I - GP is the abbreviation of gas ballast port. *OS means "Oil mist Separator"
Remark II - All products with $0.00 value, we will contact you and send a special quotation after order have been placed.
Remark III - We do ship internationally but shipping price and method are varied; we will contact you after order have been placed.
